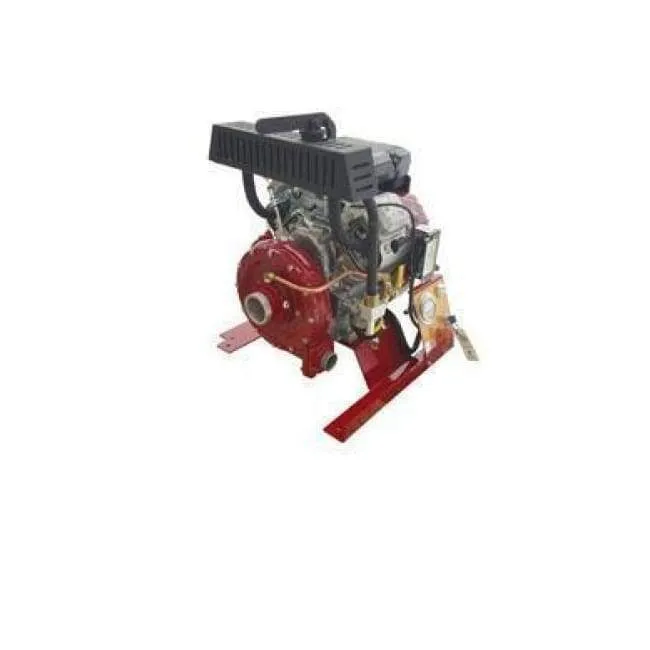

ENGINE SPECIFICATIONS
350000 Vanguard air cooled engine
V-Twin cylinder, 4-stroke gasoline engine
Electric start with recoil start as backup
Alternator capacity: 12V - 20A

INCLUDED ACCESSORIES
Pressure gauge
Low oil alert
Quick connect for 12-V battery

PUMP UNIT SPECIFICATIONS
C.E.T. single stage centrifugal pump
Pump body made from high resistance aluminum alloy
Bronze impeller
Mechanical shaft seal
Exhaust priming system, guaranteed up to 20' (6 meter) lift
One 1 1/2'' (38 mm) NPT-M delivery outlet flange
One 2 1/2" (65mm) suction inlet
Dimensions: Length: 20'' (508 mm); Width: 21 1/2''(546 mm); Height: 25 1/2'' (648 mm)
Wet weight: 143 lbs (65 kg)

MAX FLOW: 280 GPM
MAX PRESSURE: 175 PSI
255 GPM @ 25 PSI
140 GPM @ 100 PSI
75 GPM @ 150 PSI
